2488H V7

2U rack server

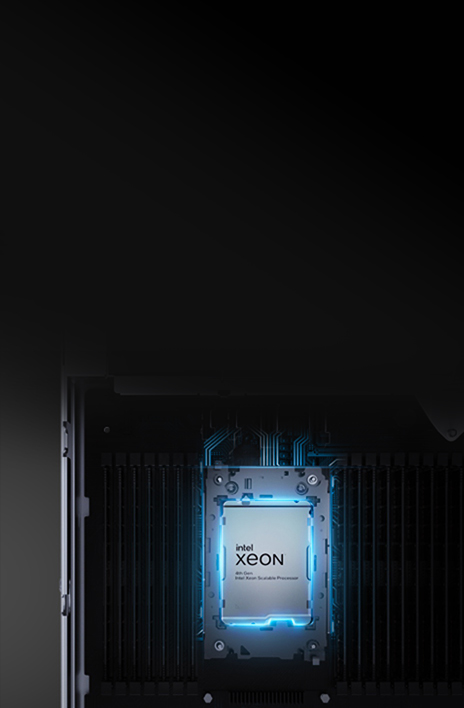

2 or 4 x 4th Gen Intel^® Xeon^® Scalable processors with TDP up to 350 W per processor

Emmitsburg PCH

64 x DDR5 DIMMs

Hot-swappable drives configurations:

• 8 x front 2.5″ SAS/SATA drives

• 25 x front 2.5″ SAS/SATA drives

• 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs

Flash storage: 2 x M.2 SSDs, supporting hardware RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures;

RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Multiple network expansion capabilities

1 x OCP 3.0 NIC, supporting hot swap

Up to 10 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 9 x standard PCIe slots

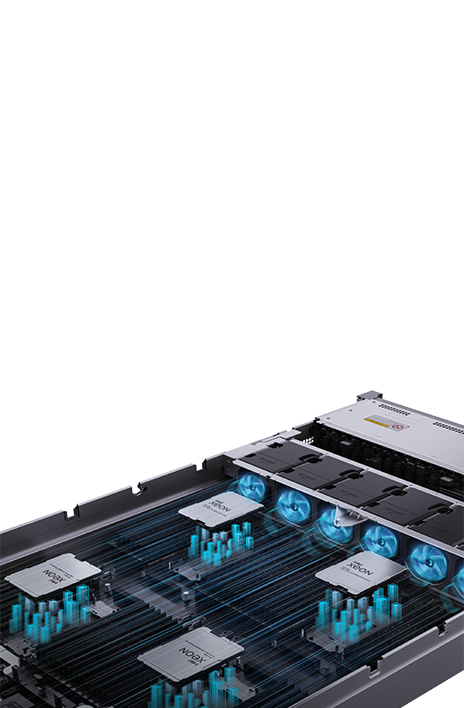

6 x hot-swappable counter-rotating fans in N+1 redundancy

2 x hot-swappable Platinum/Titanium PSUs in 1+1 redundancy

• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)

• 1500 W AC Platinum PSUs

850 W (input: 100 V to 127 V AC)

1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)

• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)

• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)

• 2000 W AC Platinum/Titanium PSUs

1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)

2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

2150 W Titanium PSUs (input: 230 V to 240 V AC, or 230 V to 288 V DC)

• 3000 W AC Titanium PSUs

1300 W (input: 90 V AC to 140 V AC; rated voltage: 100 V AC to 127 V AC)

2500 W (input: 180 V AC to 242 V AC; rated voltage: 200 V AC to 220 V AC)

3000 W (input: 198 V AC to 264 V AC or 180 V DC to 300 V DC; rated voltage: 220 V AC to 240 V AC or 240 V DC)

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.

• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler. For more, click here

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4

CE, UL, CCC, FCC, VCCI, and RoHS

L-shaped guide rails, adjustable guide rails, and holding rails

Chassis with 2.5″ drives: 86.1 mm x 447 mm x 898 mm (3.39 in. x 17.60 in. x 35.35 in.)
